Passive 6 Inch 6W Ceiling Loudspeaker - High Quality Surround Sound Speaker
CL-106B Ceiling Speaker: A Reliable Audio Solution
Key Features
- 6-inch paper cone speaker unit for balanced sound reproduction
- Durable iron construction with metal baffle and grille
- White iron back cover for enhanced protection (B series)
- 6W power handling at 100V operation
- 90dB sensitivity for clear audio projection
- 110-15KHz frequency response range
- Easy spring clamp mounting system

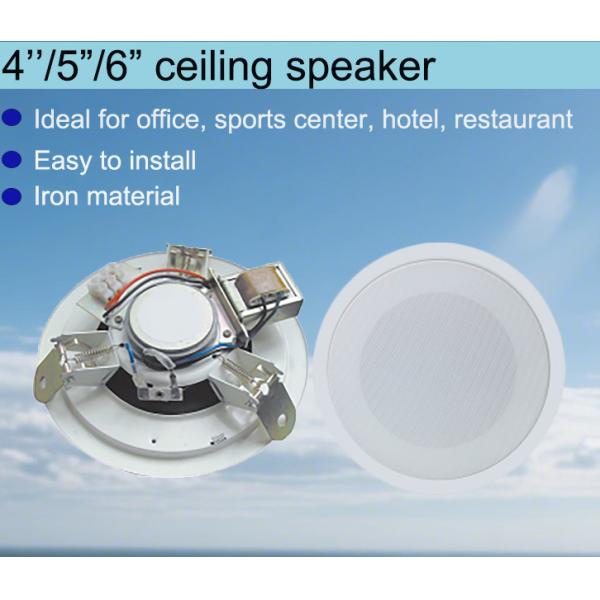

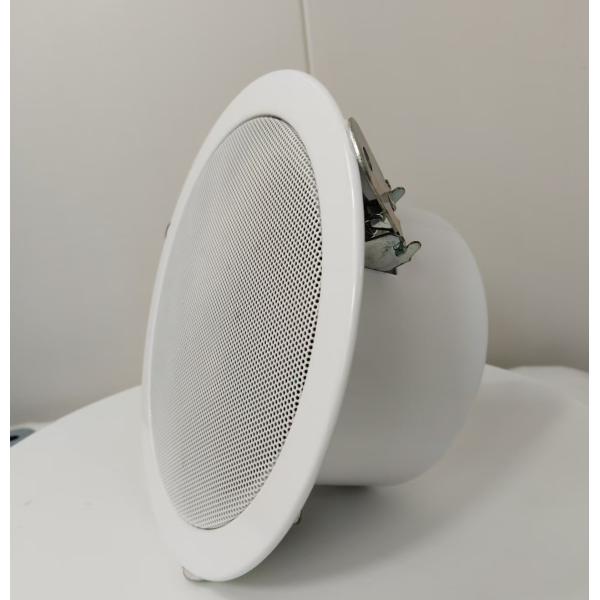

CL-106B Passive 6 Inch 6W Ceiling Loudspeaker High Quality Surround Sound Speaker
Design & Construction
The CL-106B is a high-performance ceiling speaker built for durability. Its robust iron construction with metal baffle and grille ensures long-term reliability in commercial environments. The distinctive white iron back cover (B series) provides additional protection while maintaining a professional appearance.
Acoustic Performance
With 6W power handling and 90dB sensitivity, this speaker delivers clear, audible sound across its 110-15KHz frequency range. The 6-inch paper cone driver provides balanced audio reproduction suitable for both background music and voice paging applications in various commercial settings.
Installation & Dimensions
Designed for easy ceiling mounting, the CL-106B features a convenient spring clamp mechanism. The unit measures 245×115mm with a 225mm mounting hole diameter, weighing just 1.3kg for manageable installation while maintaining structural integrity.
Applications
Ideal for commercial and industrial environments including offices, sports centers, shopping malls, hotels, and restaurants. The CL-106B excels in applications requiring reliable background music and public address systems.
Technical Specifications
| Model |
Speaker Size |
Power |
Voltage |
Sensitivity |
Frequency Response |
Dimension(mm) |
Material |
Mounting Hole |
| CL-104 |
4" |
6W |
100V |
90DB |
110-15KHz |
180×50 |
Iron |
155 |
| CL-105 |
5" |
6W |
100V |
90DB |
110-15KHz |
200×67 |
Iron |
170 |
| CL-106 |
6" |
6W |
100V |
90DB |
110-15KHz |
245×75 |
Iron |
225 |
| CL-104B |
4" |
6W |
100V |
90DB |
110-15KHz |
180×110 |
Iron |
155 |
| CL-105B |
5" |
6W |
100V |
90DB |
110-15KHz |
200×105 |
Iron |
170 |
| CL-106B |
6" |
6W |
100V |
90DB |
110-15KHz |
245×115 |
Iron |
225 |
